"Saving Lives, One Piece of Gear at a Time"
TNT Hydraulic Rescue Tools in South Africa
IGNISARMOR — TNT Rescue Systems' Sole Authorised Dealer and Accredited Service Provider
IGNISARMOR is the sole authorised dealer for TNT Rescue Systems in South Africa, supplying professional hydraulic hose-line and battery-powered rescue tools for vehicle extrication and emergency rescue operations.
Our range is designed to support professional firefighters, municipal fire and rescue services, industrial emergency response teams and other specialist rescue personnel operating in demanding conditions.
As TNT's authorised local partner, IGNISARMOR provides access to genuine TNT rescue equipment, technical assistance, product information, and authorised after-sales service and repairs.
We understand the operational demands placed on rescue teams and help customers identify suitable equipment for their specific requirements, with access to TNT's renowned Forever Warranty.
For TNT hydraulic rescue tools, technical assistance, servicing or quotations in South Africa, contact IGNISARMOR.
Saving Lives, One Piece of Gear at a Time.
​
BT-6.5 HONDA Hydraulic Pump
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR LENGTH 538.5 MM WIDTH 393.7 MM HEIGHT 381 MM WEIGHT 34.5 KG MOTOR HONDA GX200 4 STROKE DISPLACEMENT 196.00 CC / 4.8 KW / 6.5 BHP FUEL TANK CAPACITY 3.6 LITER APPROXIMATE RUN TIME2 HOURS ENGINE OILSEE HONDA OWNER’S MANUAL HYDRAULIC PUMP 2 STAGE RADIAL PISTON OVER PISTON TOOL OPERATION2 TOOL SIMULTANEOUS OPERATION RESERVOIR CAPACITY 3.4 LITER CERTIFIED TO NFPA 1960-2024 Simultaneous Mode Specification 1ST STAGE SETTING 220 BAR 1ST STAGE FLOW 4,014.8 CC/MIN 2ND STAGE SETTING 724 BAR 2ND STAGE FLOW 1,392.9 CC/MIN
ATT-6.5 HONDA Hydraulic Pump
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR LENGTH 538.5 MM WIDTH393.7 MM HEIGHT 381 MM WEIGHT 36.7 KG MOTOR HONDA GX200 4 STROKE DISPLACEMENT 196.00 CC / 4.8 KW / 6.5 BHP FUEL TANK CAPACITY 3.6 LITER APPROXIMATE RUN TIME2 HOURS ENGINE OILSEE HONDA OWNER'S MANUAL HYDRAULIC PUMP 2 STAGE RADIAL PISTON OVER PISTON TOOL OPERATION2 TOOL SIMULTANEOUS OPERATION- RESERVOIR CAPACITY 3.4 LITER CERTIFIED TO NFPA 1960-2024 Simultaneous Mode Specification 1ST STAGE SETTING 220 BAR 1ST STAGE FLOW 4,014.8 CC/MIN 2ND STAGE SETTING 724 BAR 2ND STAGE FLOW 1,392.9 CC/MIN Alternating Acceleration Mode (Per Tool) Specification 1ST STAGE SETTING 220 BAR 1ST STAGE FLOW 8,029.6 CC/MIN 2ND STAGE SETTING 724 BAR 2ND STAGE FLOW2,785.8 CC/MIN
BT-1.5 Hydraulic Pump
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR LENGTH 406.4 MM WIDTH273 MM HEIGHT 387.3 MM WEIGHT 12.93 KG MOTOR HONDA GXH50 4 STROKE DISPLACEMENT 49.4 CC / 1.6 KW / 2.1 BHP FUEL TANK CAPACITY 0.72 LITER APPROXIMATE RUN TIME0.82 HOURS ENGINE OIL SEE HONDA OWNER'S MANUAL HYDRAULIC PUMP2 STAGE RADIAL PISTON OVER PISTON TOOL OPERATIONSINGLE TOOL OPERATION RESERVOIR CAPACITY 1.89 LITER CERTIFIED TO NFPA 1960-2024 Alternating Mode Specification 1ST STAGE SETTING 241 BAR 1ST STAGE FLOW 3,219 CC/MIN 2ND STAGE 724 BAR 2ND STAGE FLOW 1,261.8 CC/MIN
HDP Hydraulic Hand Pump
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR LENGTH 609.6 MM WIDTH142.24 MM HEIGHT 134.62 MM WEIGHT 7.25 KG HANDLE EFFORT 2ND STAGE43.09 KG USEABLE OIL CAPACITY 1622 CC RESERVOIR CAPACITY1999 CC HYDRAULIC PUMP 1ST STAGE PRESSURE 13.8 BAR 1ST STAGE FLOW 12.94 CC 2ND STAGE PRESSURE 724 BAR 2ND STAGE FLOW2.29 CC
SLC-24 Hose-Line Cutter
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR BLADE OPENING 127 MM CUTTER REACH 82.36 MM WIDTH228.6 MM LENGTH 723 MM HEIGHT 177.8 MM WEIGHT 15.3 KG CUT TESTA6, B5, C7, D7, E6 MAX CUT FORCE 524.89 KN CERTIFIED TO NFPA 1960-2024
SLC-28 Hose-Line Cutter
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR BLADE OPENING 193.5 MM CUTTER REACH 101.58 MM WIDTH285.8 MM LENGTH 736.6 MM HEIGHT 177.8 MM WEIGHT 18 KG CUT TESTA7, B8, C67, E6 MAX CUT FORCE693.92 KN CERTIFIED TO NFPA 1960-202
SLC-29 Hose-Line Cutter
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR BLADE OPENING 203 MM CUTTER REACH 113.62 MM LENGTH 726.4 MM WIDTH285.8 MM HEIGHT 177.8 MM WEIGHT 18.1 KG CUT TEST A8, B9, C9, D9, E9, F5 MAX CUT FORCE 1,256.40 KN CERTIFIED TO NFPA 1960-2024
BFC-320 Hose-Line Cutter
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR BLADE OPENING228.6 MM CUTTER REACH140.54 MM LENGTH762 MM WIDTH273.1 MM HEIGHT177.8 MM WEIGHT22.6 KG NFPA CUT TEST A9, B9, C9, D9, E9, F6 MAX CUT FORCE1,423.43 KN CERTIFIED TO NFPA 1960-2024
SLCC-30 Hose-Line Combi Tool
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR BLADE OPENING272.9 MM CUTTER REACH115.73 MM MAX. SPREAD DISTANCE355.6 MM MAX. SPREAD FORCE93.1 KN MAX. PULL DISTANCE265.26 MM MAX. PULL FORCE71.08 KN LENGTH825.5 MM WIDTH228.6 MM HEIGHT177.8 MM WEIGHT17.6 KG CUT TESTA6, B5, C7, D7, E7 MAX CUT FORCE524,89 KN CERTIFIED TO NFPA 1960-2024
BFCC-28 Hose-Line Combi Tool
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR BLADE OPENING342.9 MM CUTTER REACH100.39 MM MAX. SPREAD DISTANCE422.66 MM MAX. SPREAD FORCE1,272 KN LENGTH858.8 MM WIDTH228.6 MM HEIGHT177.8 MM WEIGHT20.16 KG CUT TESTA8, B7, C8, D8, E9, F5 MAX CUT FORCE694 KN CERTIFIED TO NFPA 1960-2024
S-100-24 Hose-Line Spreader
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. SPREAD DISTANCE 609.6 MM MAX. PULL DISTANCE 513.65 MM MAX. SPREAD FORCE RANGE 286 – 1,078 KN MAX. PULL FORCE 130 KN LENGTH 774.7 MM WIDTH 342.9 MM HEIGHT 165.1 MM WEIGHT 18.7 KG CERTIFIED TO NFPA 1960-2024
S-100-28 Hose-Line Spreader
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. SPREAD DISTANCE 711.2 MM MAX. PULL DISTANCE 616.31 MM MAX. SPREAD FORCE RANGE 249 – 1,014 KN MAX. PULL FORCE 113 KN LENGTH 830.6 MM WIDTH 342.9 MM HEIGHT 165.1 MM WEIGHT 19.9 KG CERTIFIED TO NFPA 1960-2024
S-100-32 Hose-Line Spreader
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. SPREAD DISTANCE 800.10 MM MAX. PULL DISTANCE 565.15 MM MAX. SPREAD FORCE RANGE 225 – 895 KN MAX. PULL FORCE 102 KN LENGTH 831.85 MM WIDTH 342.9 MM HEIGHT 165.1 MM WEIGHT 20.09 KG CERTIFIED TO NFPA 1960-2024
S-200-24 Hose-Line Spreader
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. SPREAD DISTANCE 609.6 MM MAX. PULL DISTANCE 513.65 MM MAX. SPREAD FORCE RANGE 453 – 1,343 KN MAX. PULL FORCE 179 KN LENGTH 774.7 MM WIDTH 342.9 MM HEIGHT 165.1 MM WEIGHT 21.2 KG CERTIFIED TO NFPA 1960-2024
S-200-28 Hose-Line Spreader
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. SPREAD DISTANCE 711.2 MM MAX. PULL DISTANCE 616.31 MM MAX. SPREAD FORCE RANGE 394 – 1,199 KN MAX. PULL FORCE 179 KN LENGTH 830.6 MM WIDTH 342.9 MM HEIGHT 165.1 MM WEIGHT 22.4 KG CERTIFIED TO NFPA 1960-2024
S-200-32 Hose-Line Spreader
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. SPREAD DISTANCE 812.8 MM MAX. PULL DISTANCE 718.93 MM MAX. SPREAD FORCE RANGE 356 – 1,099 KN MAX. PULL FORCE 161 KN LENGTH 894.3 MM WIDTH 342.9 MM HEIGHT 165.1 MM WEIGHT 23.1 KG CERTIFIED TO NFPA 1960-2024
R-30 Hose-Line Ram
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. PUSH FORCE 147 KN MAX. PULL FORCE 79.6 KN STROKE 229 MM EXTENDED LENGTH 774.7 MM CLOSED LENGTH 546.3 MM WIDTH 88.9 MM HEIGHT 188 MM WEIGHT 14.5 KG CERTIFIED TO NFPA 1960-2024
R-40 Hose-Line Ram
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. PUSH FORCE 147 KN MAX. PULL FORCE 79.6 KN STROKE 355.6 MM EXTENDED LENGTH 1,028.7 MM CLOSED LENGTH 673.1 MM WIDTH 88.9 MM HEIGHT 188 MM WEIGHT 16.8 KG CERTIFIED TO NFPA 1960-2024

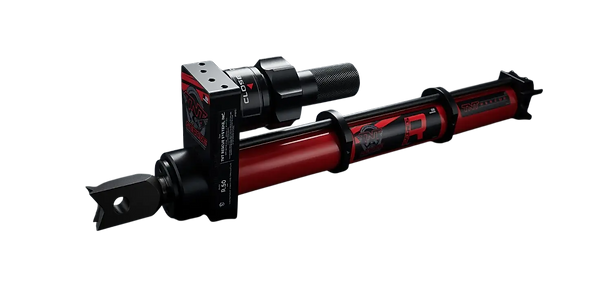

R-50 Hose-Line Ram
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. PUSH FORCE 147 KN MAX. PULL FORCE 79.6 KN STROKE 482 MM EXTENDED LENGTH 1,285.2 MM CLOSED LENGTH 802.6 MM WIDTH 88.9 MM HEIGHT 188 MM WEIGHT 18.6 KG CERTIFIED TO NFPA 1960-2024
TLS-25 Hose-Line Ram
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR 1ST STAGE PUSH FORCE 229 KN 2ND STAGE PUSH FORCE 82.3 KN 1ST STAGE STROKE 247 MM 2ND STAGE STROKE 159 MM EXTENDED LENGTH 831.9 MM CLOSED LENGTH 425.5 MM WIDTH 114.3 MM HEIGHT 215.9 MM WEIGHT 18.2 KG CERTIFIED TO NFPA 1960-2024
TLS-40 Hose-Line Ram
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR 1ST STAGE PUSH FORCE 146.7 KN 2ND STAGE PUSH FORCE 57.3 KN 1ST STAGE STROKE 253.49 MM 2ND STAGE STROKE 304.8 MM EXTENDED LENGTH 1,059.94 MM CLOSED LENGTH 501.7 MM WIDTH 88.9 MM HEIGHT 184.2 MM WEIGHT 12.25 KG CERTIFIED TO NFPA 1960-2024
TLS-50 Hose-Line Ram
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR 1ST STAGE PUSH FORCE 229 KN 2ND STAGE PUSH FORCE 82.3 KN 1ST STAGE STROKE 411 MM 2ND STAGE STROKE 320 MM EXTENDED LENGTH 1,278.3 MM CLOSED LENGTH 546.3 MM WIDTH 114.3 MM HEIGHT215.9 MM WEIGHT 20.4 KG CERTIFIED TO NFPA 1960-2024
CSC-40 Hose-Line Confined-Space Cutter
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. BLADE OPENING 38.1 MM MAX. CUT FORCE 223 KN LENGTH 304.8 MM WIDTH 81.3 MM HEIGHT 132.1 MM WEIGHT 5 KG
CSS-40 Hose-Line Confined-Space Spreader
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. SPREAD DISTANCE 203.2 MM MAX. SPREAD FORCE 22 KN LENGTH 406.4 MM WIDTH 81.3 MM HEIGHT 104.1 MM WEIGHT 6.8 KG
CSCC-40 Hose-Line Confined-Space Combi Tool
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR MAX. BLADE OPENING 127 MM MAX. SPREAD DISTANCE 135.26 MM MAX. CUT LENGTH 52.78 MM MAX. CUT FORCE 223 KN LENGTH 336.5 MM WIDTH 81.3 MM HEIGHT 132.1 MM WEIGHT 4 KG
RCV Remote Control Valve
Legacy Hose Rescue Tools
Specification MAX. WORKING PRESSURE 724 BAR WORKS WITH CSC-40, CSCC-40, CSS-40
